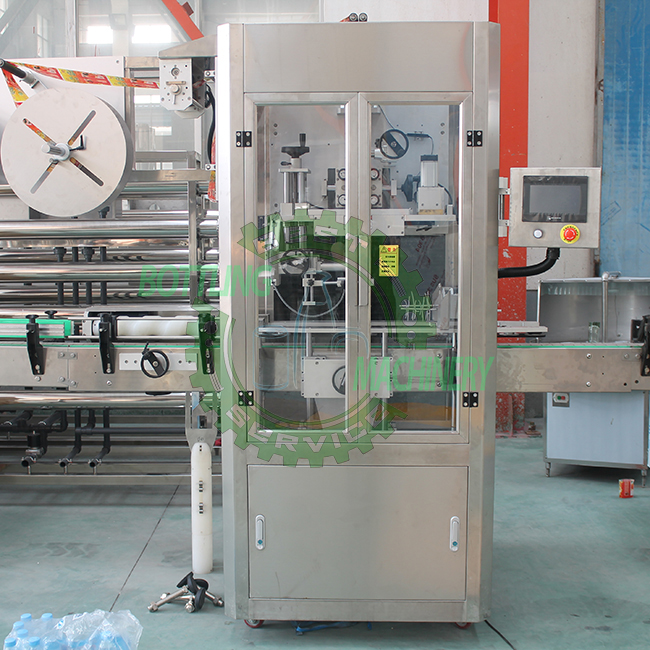

Automatic Servo Drive Touch Screen Sleeve Shrink Can Bottle Labeling Machine

Name: Automatic Servo Drive Touch Screen Sleeve Shrink Can Bottle Labeling Machine
Brand: BOTTLING MACHINERY
Price: 10000 USD

Quality Automatic Servo Drive Touch Screen Sleeve Shrink Can Bottle Labeling Machine for sale

Brand Name : BOTTLING MACHINERY

Model Number : TB-150 / 250

Certification : CE/ISO9001-2008

Place of Origin : Zhangjiagang city Jiangsu provice China

MOQ : 1

Price : 10000-11000USD

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10sets per month

Delivery Time : 20-25 working days

Packaging Details : Sea shipping Wooden case

Name : Single head 150BPM / 250BPM sleeve labeling machine

TB-150 Speed : 150bottles per minute

TB-250 Speed : 250bottles per minute

Lable type : Sleeve label

Material of label : PVC、 PET、 OPS

Diameter of bottle : ∮28mm-∮125mm

Length of label : 30mm-250mm

Voltage of Host machine : AC220V, 50/60HZ, 1.5-2.5KW, single-phase

Contact Now

Description of Automatic Servo Drive touch screen sleeve shrink can bottle labeling machine

Equipment list of automatic Single head 150BPM / 250BPM sleeve labeling machine:

Items	Description	Model	Size(mm)	Qty
Single head 150BPM sleeve labeling machine set
1.1	Sleeve applicator	TB-150	20008502000	1set

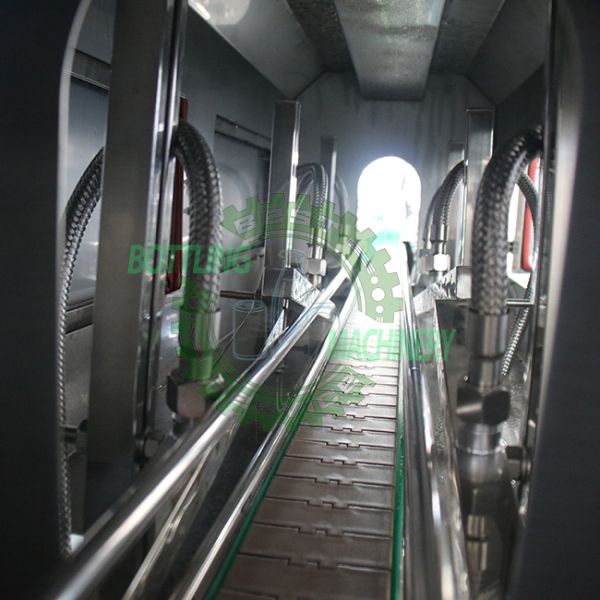

1.2	Sleeve shrink tunnel	SB-1500	15007002000	1set
1.3	Steam generator	18KW	7605701030	1set
1.4	Connection conveyor system	/	/	4m
1.5	Spare parts	/	/	1suit

Single head 250BPM sleeve labeling machine set
2.1	Sleeve applicator	TB-250	20008502000	1set
2.2	Sleeve shrink tunnel	SB-2000	20007002000	1set
2.3	Steam generator	24KW	7605701030	1set
2.4	Connection conveyor system	/	/	5m
2.5	Spare parts	/	/	1suit

Parameters of automatic Single head 150BPM / 250BPM sleeve labeling machine:

Voltage:Host machines;AC220V, 50/60HZ, 1.5-2.5KW, single-phase

TB-150 Speed: 150BPH

TB-250 Speed: 250BPH, speed slightly faster when label is shorter

Diameter of bottle body: ∮28mm-∮125mm

Length of label: 30mm-250mm

Thickness of label: 0.035mm-0.045mm

Material of label:PVC, PET, OPS

Applicator size:L2000MM*W850MM*H2000MM

Configuration table of machine parts:

1. Bottle separating mechanism	1set	7. Label carrier drive mechanism	1set
2. Bottle positioning mechanism	1set	8. Cutter mechanism	1set
3. Single material putting place	1set	9. Synchronous label brush-off mechanism	1set
4. Fiber-optical electric eye controlling	1set	10. Automatic platform elevating mechanism	1set
5. Center guide pin	1set	11. Man-machine interface of operation control panel	1set
6. Hairbrush	1set

The main configuration table and function of automatic sleeve labeling machine

Name	Function
Material offering group	Offer motor for label carrier
Shelf group	Install volume label device
Platform elevating group	Adjust the height of host automatically according to the bottle shapes
Brush-off group	Brushing the cut-ted label on the bottle
Cutter group	Cutting off the labels which are sent to Center guide pin
Cutter controlling group	Control the cutter operational site
The back drive group	Offer motor for label of center guide pin
The front drive adjusting group	Grasping the center guide pin
Frame of Electric eye group	Adjust the best cutting position of the label
Electric eye of bottle lighting detecting group	Adjust the sleeve labeling position of bottle body
Hairbrush group	Brush the label which cannot sleeve properly to the right place
Bottle positioning group	Make bottle stable, control sleeve labeling position
Center guide pin group	Make volume label distracted for transfer and cut easily
Bottle entering screw bolts	Separate bottle on equal distance in order to sleeve labeling accurately

Automatic Servo Drive Touch Screen Sleeve Shrink Can Bottle Labeling Machine
